The Ultimate Guide to Linear Guiding Elements: 12 Expert Tips for Precision and Longevity

What Are Linear Guiding Elements? (Definition & Core Function)

Linear guiding elements are mechanical assemblies designed to support and guide moving parts along a precise linear path while minimizing friction and bearing heavy loads. By replacing sliding friction with rolling friction, these systems ensure high rigidity and positional accuracy in automated machinery.

At the heart of modern automation, linear motion systems function by constraining motion to a single axis. This is achieved through a recirculating mechanism where balls or rollers rotate between a stationary rail and a moving block. This design significantly reduces the coefficient of friction compared to traditional box ways, allowing for higher speeds and reduced energy consumption.

According to Wikipedia, linear slides provide low-friction movement for equipment powered by inertia or drive mechanisms, making them indispensable in industries ranging from semiconductor manufacturing to heavy machining.

The three primary components of these systems include:

• The Rail (Track): A precision-ground steel track that serves as the foundation and directional guide.
• The Block (Carriage): The moving unit that carries the load and houses the recirculating mechanism.

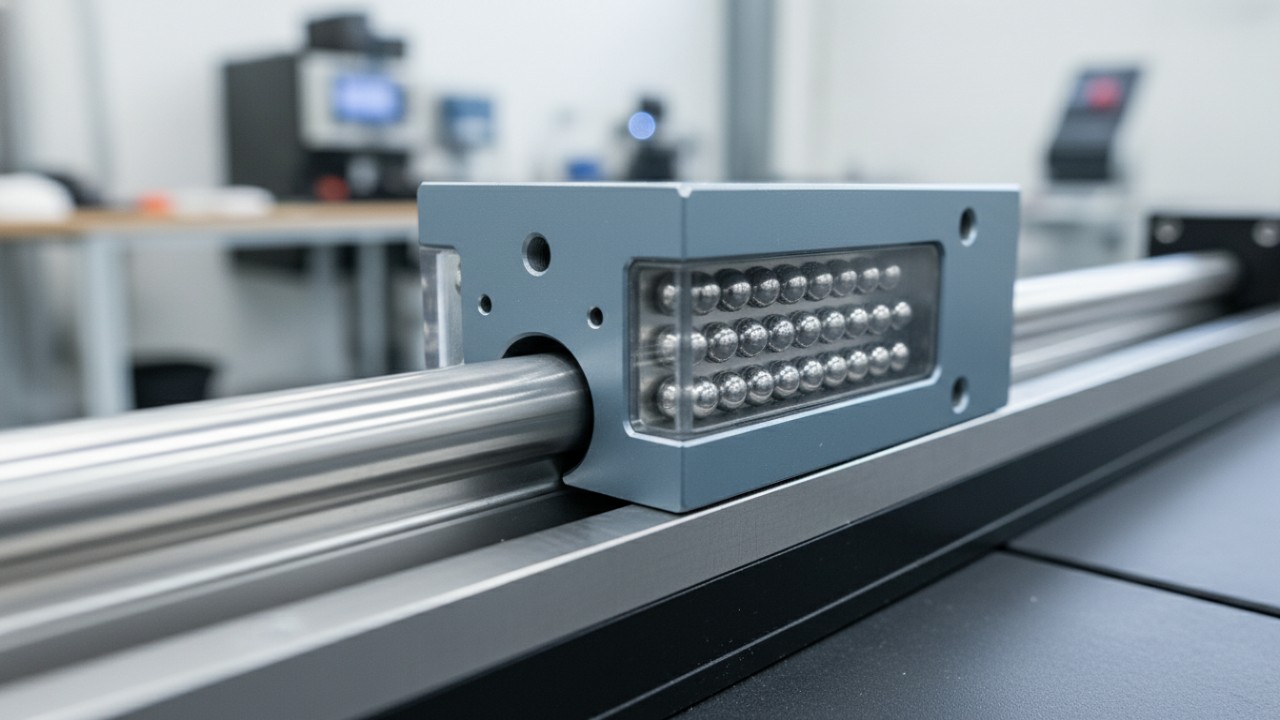

• The Rolling Elements: Precision balls or rollers that facilitate movement; recirculating ball guides are most common for general automation.

Quick Summary: Key Takeaways for Engineers

For engineers seeking immediate value, success with linear guides hinges on balancing load capacity with environmental protection. This guide condenses decades of tribological expertise into actionable advice for selecting and maintaining your equipment.

Key insights include:

• Precision Selection: The relationship between accuracy grade and mounting surface flatness is critical; higher accuracy isn't always better if the mounting surface is uneven.
• Rigidity vs. Friction: Understanding how preload affects system stiffness and thermal generation.
• Longevity: Lubrication is the single most significant factor in preventing premature failure.

Tips 1-4: Selection & Sizing for Maximum Efficiency

Selecting the correct linear guide requires a calculation of the dynamic load rating versus the static load capacity to ensure the system can handle operation cycles without fatigue. Oversizing increases cost and weight, while undersizing leads to catastrophic failure.

When specifying components, consider these expert tips:

1. Calculate Load Ratings: Don't just look at the static load. You must calculate the dynamic load rating (C) based on the L10 life expectancy formula (typically 50km or 100km of travel). As noted in standards like ISO 14728-1, this calculation predicts the fatigue life of the raceway.
2. Rolling Element Type: Choose recirculating ball guides for high-speed, low-noise applications (e.g., 3D printers). Opt for roller guides when extreme rigidity and load capacity are required (e.g., large CNC mills).
3. Accuracy Grade Selection: Do not default to "Ultra-Precision" (UP) unless necessary. For general automation, Normal (N) or High (H) grades often provide the best balance of cost and performance. Higher precision requires exponentially flatter mounting surfaces.
4. Environmental Sealing: If your application involves dust, wood chips, or coolant, standard seals may fail. Leveraging expertise from Polypac Industrial Technology Co.,Ltd, we recommend selecting seals made from robust materials like FKM or filled PTFE to resist chemical attack and abrasion.

Tips 5-8: Installation Best Practices for Precision

Proper installation is defined by the alignment of the master rail to a reference edge (datum plane) to ensure the system travels parallel without internal binding. Even the highest quality precision guide accuracy can be negated by poor mounting techniques.

Follow these steps to ensure a stress-free installation:

• Tip 5: Surface Flatness: Verify that the mounting surface flatness corresponds to the guide's accuracy grade. A mismatch can cause the block to bind, effectively acting as a brake.
• Tip 6: Torque Sequences: Tighten rail bolts from the center outwards using a torque wrench. This prevents the rail from warping or "snaking" during installation.
• Tip 7: Parallel Alignment: When using two rails, fix the "Master Rail" first against the reference edge. Then, use a dial indicator to align the "Subsidiary Rail" parallel to the master, preventing the rails from fighting each other.
• Tip 8: Datum Planes: Always press the rail and block against the machined reference edges (shoulders) of the mounting bed before tightening bolts to guarantee straightness.

Tips 9-12: Maintenance & Longevity Strategies

Linear rail maintenance is often neglected, yet it is the primary determinant of whether a guide lasts 5 years or 5 months. A strict maintenance schedule prevents the breakdown of the lubricating film, which leads to metal-on-metal contact.

Implement these strategies to extend service life:

9. Lubrication Schedule: Establish a relubrication interval based on travel distance (e.g., every 100km) rather than time. Grease degrades with use, not just age.
10. Acoustic Monitoring: Listen for changes in sound. A smooth hum is normal; a grinding or clicking noise often indicates spalling on the balls or raceways.
11. Wiper Seal Inspection: Regularly check the end seals and scrapers. As a leader in sealing technology, Polypac understands that once a seal is compromised, contaminants will enter the block and destroy the raceways rapidly.
12. Protective Covers: In environments with heavy swarf (chips), install bellows or telescopic covers. This adds a physical barrier that simple rubber seals cannot provide.

Industry Leading Solution: High-Performance Linear Guides

Advanced linear motion solutions now incorporate specialized coatings and custom guiding elements to handle extreme manufacturing environments. Standard steel rails often corrode in humid or caustic washdown settings, necessitating upgrades.

Polypac Industrial Technology Co.,Ltd brings significant value here. While we are renowned for our hydraulic sealing solutions, our expertise in materials like Bronze-filled PTFE and Carbon-filled PTFE is directly applicable to the guiding tapes and wear rings used in conjunction with linear actuators. For instance, in a recent case study, replacing standard rubber wipers with our custom scraper seals reduced contaminant ingress by 40% in a ceramic tile cutting facility.

Our focus on tribology—the science of wear and friction—ensures that our components enhance the overall system rigidity without sacrificing smoothness.

Future Trends 2026+: Smart Guiding Elements & IoT

The future of linear motion lies in "Smart Rails" equipped with embedded sensors that monitor vibration, temperature, and lubrication status in real-time. This shift moves maintenance from a reactive schedule to a predictive model compatible with Industry 4.0.

Emerging trends include:

• Embedded IoT Sensors: Rails that communicate wear data directly to the PLC, alerting operators before precision guide accuracy is lost.
• Self-Lubricating Polymers: Development of porous polymer reservoirs that release lubricant microscopically, extending intervals to 20,000km.
• Hybrid Materials: The use of ceramic rolling elements in steel rails to prevent micro-welding and allow for higher speed operations.

Common Mistakes to Avoid (Gap Analysis)

Many engineers inadvertently shorten the life of their linear guides by over-constraining the system or ignoring geometric errors. Avoiding these pitfalls is as important as selecting the right components.

Avoid these frequent errors:

• Over-Constraint: Bolting down two rails rigidly without allowing one side to float slightly can cause binding if the rails are not perfectly parallel.
• Ignoring Moments: In single-rail applications, failing to calculate the "Overturning Moment" (roll, pitch, yaw) can peel the balls out of the raceway.
• Interchangeability Risks: Mixing blocks and rails from different brands. Even if dimensions look similar, internal contact angles often differ.

Conclusion

Achieving long-lasting precision in your machinery requires a holistic approach that combines correct dynamic load rating calculations with disciplined linear rail maintenance. By following these 12 expert tips—ranging from proper alignment to advanced sealing solutions from experts like Polypac—you can significantly reduce downtime and increase the ROI of your automation assets.

Contact us today to optimize your linear motion strategy and custom sealing requirements.

FAQ

What is the difference between a linear bearing and a linear guide?

Linear guides (comprising profiled rails and blocks) offer significantly higher load capacity and rigidity compared to simple round shaft linear bearings. Furthermore, profiled guides prevent rotation naturally, whereas round shaft bearings often require external support or dual-shaft configurations to stop the carriage from rotating around the shaft.

How often should linear guiding elements be lubricated?

Lubrication intervals depend on the duty cycle, but a general rule is to relubricate every 100km of travel or every 6 months, whichever comes first. Applications involving heavy loads, high speeds, or vertical mounting orientations deplete lubricant faster and require more frequent attention.

What causes linear guide failure?

The most common causes of failure are lack of lubrication, contamination (such as dust or metal chips entering the block), and mounting misalignment. Overloading the guide beyond its static safety factor can also cause permanent deformation of the raceways, known as brinelling.

Can I replace just the block and keep the old rail?

You can only replace the block if the components are rated as "Interchangeable" by the manufacturer and the rail is in good condition. However, if the rail shows signs of wear, unevenness, or spalling, placing a new precision block on it will result in rapid failure of the new component.

What is preload in linear guides?

Preload is an internal load applied to the rolling elements during manufacturing to remove internal clearance and increase the system's rigidity. While preload improves accuracy and reduces vibration, it slightly increases the friction and heat generation of the guide.

Ball guide vs. Roller guide: Which is better?

Ball guides are generally better for high-speed, smooth motion and general automation applications. Roller guides use cylindrical rollers instead of balls, providing a larger contact area which results in higher load capacity and rigidity, making them ideal for heavy machining and CNC equipment.

How do I choose the right accuracy grade?

For most standard automation and transport tasks, Normal (N) or High (H) grade is sufficient. Precision (P), Super Precision (SP), or Ultra Precision (UP) grades are reserved for applications like semiconductor manufacturing or high-end CNC machining where micron-level accuracy is mandatory.

What are the signs of a worn-out linear guide?

Signs of wear include increased vibration during movement, a noticeable increase in noise (often a grinding sound), and visual flaking or pitting on the metal surface of the rail. Additionally, a loss of positional accuracy or "stick-slip" motion indicates that the rolling elements are no longer circulating smoothly.
