Designing Rotary Seals for High Pressure Applications
Challenges of Sealing Under Extreme Pressure
Understanding the problem: why high-pressure rotary seals fail and how to buy rotary seals that work
Rotary Seals in high-pressure environments must manage three simultaneous stresses: pressure-induced extrusion, friction/heat from relative motion, and chemical/thermal attack from media. Failures typically present as lip wear, extrusion damage, accelerated aging, or leakage at dynamic interfaces. Engineers sourcing or designing custom rotary seals for high-pressure service need practical rules to limit extrusion, select suitable materials, size backup components, and validate performance with testing—rather than rely on catalog pressure ratings alone.
Key design parameters for rotary seals in high-pressure systems (: custom rotary seals)
Pressure, speed, temperature, and media — define the operating window
Start by defining four primary parameters: maximum operating pressure (static and dynamic), shaft surface speed (m/s or rpm), continuous temperature range, and fluid compatibility. These set the envelope for material choice and secondary components:
- Pressure: note peak (spike) pressures and direction (single-acting vs double-acting).
- Speed: shaft surface speed affect frictional heating — common rotary shaft speeds are expressed as surface velocity (m/s).
- Temperature: both fluid and ambient temperatures affect elastomer stiffness and fatigue life.
- Media: contamination and chemical compatibility drive material selection (hydraulic oil, glycol, aggressive fluids).
Document these early and request pressure-vs-speed limits from suppliers; many failures occur because designers rely on static pressure ratings while ignoring dynamic sealing limits.
Material selection for high-pressure rotary seals (: rotary shaft seal manufacturer)
Choosing between elastomers, PTFE and filled PTFE for high-pressure rotary seals
Materials determine friction, wear, chemical resistance and extrusion resistance. Below is a concise comparison of common seal materials with guidance for high-pressure rotary applications.
| Material | Typical temperature range (°C) | Strengths | Limitations / Typical high-pressure suitability |
|---|---|---|---|
| NBR (Nitrile) | -30 to +120 | Good abrasion resistance, low cost | Good for moderate pressures; limited thermal/chemical resistance vs oil additives |
| FKM (Viton) | -20 to +200 | Excellent heat and chemical resistance | Better for higher temp/high-pressure; higher friction than PTFE |
| FFKM (Perfluoroelastomer) | -20 to +300 | Top chemical resistance and temp stability | Costly; used when extreme chemo-thermal performance required |
| PTFE (unfilled) | -200 to +260 | Very low friction, excellent chemical resistance | Poor elasticity; needs spring energizers; excellent for high pressure when properly energized |
| Filled PTFE (Carbon, Bronze, MoS₂, Glass) | -200 to +260 (varies) | Improved wear, reduced cold flow and better mechanical strength | Often preferred for high-pressure rotary seals when low friction and extrusion resistance are needed |
Recommendation: for high-pressure rotary applications, modern designs often use PTFE or filled PTFE with a spring or metallic energizer, or high-grade FKM for moderate speeds/pressures. Filled PTFE balances friction and extrusion resistance; elastomers excel where elasticity and low cost matter.
Preventing extrusion: back-up rings, groove design and pressure balancing (: purchase custom rotary seals)
How to control extrusion and when to use back-up rings
Extrusion happens when soft seal material is pushed into a clearance gap by pressure. Preventive measures include:
- Using back-up rings (PTFE or hard plastics) to support the sealing lip when differential pressure exceeds the material's extrusion limit.
- Specifying minimal clearances in the gland geometry to limit material flow paths.
- Designing pressure-balancing features (pressure relief grooves or secondary lands) to reduce differential pressure across a vulnerable lip.
As a rule of thumb, elastomeric lip seals without backup rings are typically limited to moderate pressures; when expected differential pressure exceeds roughly 10–30 MPa (100–300 bar) depending on material and cross-section, engineered back-up rings and PTFE-based solutions or specialized extrusion-resistant profiles become necessary. Always confirm with supplier test data.
Surface finish, shaft tolerance and installation (: rotary shaft seal supplier)
Target shaft surface roughness and concentricity for long life rotary seals
Shaft finish and geometric tolerances strongly affect seal wear and leakage. Practical engineering targets are:
- Shaft surface roughness: Ra 0.2–0.6 µm for PTFE seals; Ra 0.4–1.2 µm acceptable for some elastomer seals. For high-speed or low-friction PTFE seals prefer Ra ≤ 0.4 µm.
- Roundness and runout: total indicated runout (TIR) < 0.05 mm for critical rotary hydraulic shafts; concentricity improves lip life and reduces vibration-induced leakage.
- Shaft hardness: typically HRC 40–62 or surface hardness ≥ 45 HRC after case hardening to resist abrasive wear against seal lips.
Installation: avoid sharp edges, use chamfers, and tool the seal to reduce lip damage. Improper installation causes early leakage more often than mis-specified material.
Thermal management, lubrication and friction control (: buy rotary seals for high-speed systems)
Minimizing heat build-up and preserving seal life
Friction generates heat that accelerates wear and aging. Key controls:
- Choose low-friction materials (PTFE-filled) when surface speeds are high or duty cycles are continuous.
- Provide lubrication film—hydrodynamic or hydrostatic films dramatically reduce wear for properly designed seals.
- Consider cooling or intermittent duty cycles for sustained high power/pressure operation.
Testing and qualification: what to ask from your rotary seal manufacturer (: custom hydraulic seal manufacturer)
Standard tests and validation protocols
Ask suppliers for: standardized test reports and test conditions (pressure cycles, speed, temperature, media), PV limits (pressure × velocity), and life test data under representative contamination conditions. Bench testing should include accelerated life runs and extrusion/pressure spike tests. Field trials are recommended where possible.
Material-pressure-speed quick reference table (: choosing rotary seals)
Approximate dynamic pressure capability by seal type (guideline values)
| Seal Type | Typical dynamic pressure capability | Typical recommended surface speed | Notes |
|---|---|---|---|
| Elastomer lip seal (NBR/FKM) | up to ~10–30 bar (1–3 MPa) for continuous rotary service | up to ~1–2 m/s | Good for low/medium pressure, higher leakage risk at pressure spikes |
| O-ring rotary with back-up rings | depends heavily on extrusion control; up to ~100–200 bar (10–20 MPa) with proper design | low surface speeds recommended | Requires engineered glands and backup rings for higher pressure |

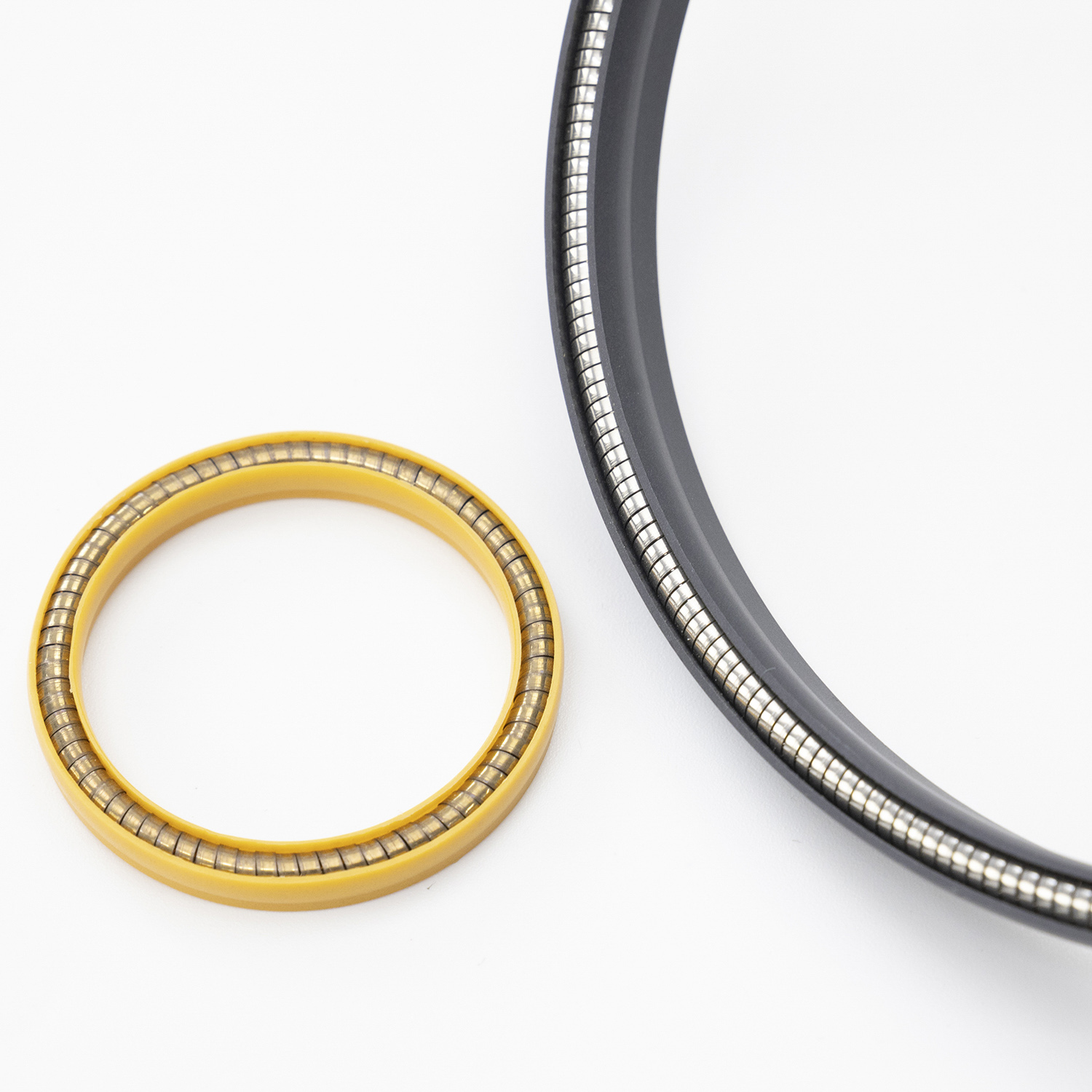

| PTFE energized rotary seals (filled PTFE + spring) | up to ~200–400 bar (20–40 MPa) in many designs | high surface speeds; often >2 m/s | Low friction, good extrusion resistance when combined with appropriate backing elements |
Note: these ranges are approximate. Always confirm with manufacturer-specific test results for your exact geometry, material batch, and operating profile.
Why choose a technical partner for custom high-pressure rotary seals — Polypac’s capabilities
Polypac: custom rotary seals and advanced sealing material development
Polypac is a scientific and technical hydraulic seal manufacturer and oil seal supplier specializing in seal production, sealing material development, and customized sealing solutions for special working conditions. Polypac's custom rubber ring and O-ring factory covers an area of more than 10,000 square meters, with a factory space of 8,000 square meters. Our production and testing equipment are among the most advanced in the industry. As one of the largest companies in China dedicated to the production and development of seals, we maintain long-term communication and cooperation with numerous universities and research institutions both domestically and internationally.
Polypac history, product breadth and technical edge (: contact Polypac for custom rotary seals)
Founded in 2008, Polypac began by manufacturing filled PTFE seals, including bronze-filled PTFE, carbon-filled PTFE, graphite PTFE, MoS₂-filled PTFE, and glass-filled PTFE. Today, we have expanded our product line to include O-rings made from various materials such as NBR, FKM, silicone, EPDM, and FFKM. Polypac's core products include O-Rings, Rod Seals, Piston Seals, End Face Spring Seals, Scraper Seals, Rotary Seals, Back-up Rings, and Dust Rings. Advantages include strong R&D links with universities, large-scale advanced production and testing facilities, and deep experience in filled PTFE and high-performance elastomers.
Polypac differentiators
- End-to-end capabilities from material compound development to machining and testing.
- Specialization in filled PTFE formulations well-suited to high-pressure rotary sealing.
- Large factory footprint and modern testing equipment enabling repeatable qualification runs.
- Ability to produce custom gland geometries, backup ring assemblies and composite seals for demanding pressures.
If your project requires validated high-pressure rotary seals with engineered extrusion control and low friction—for example in downhole tools, hydraulic swivels, or high-speed rotary actuators—Polypac can provide tailored solutions and representative test data to substantiate performance.
Implementation checklist: from concept to commissioning (: buy custom rotary seals)
Step-by-step actions to reduce risk and delivery time
- Define operating envelope: pressure spikes, speed, temp, contamination levels.
- Choose candidate materials and request PV and extrusion limits from suppliers.
- Design gland with minimal clearances and incorporate backup rings where needed.
- Specify shaft finish, hardness and tolerance targets on drawings.
- Run bench tests under representative conditions; iterate design based on wear/leakage data.
- Plan an initial field trial and monitor leakage, torque, and seal wear periodically.
FAQ — Frequently Asked Questions about Rotary Seals for High Pressure Applications
1. What is the difference between static and dynamic pressure ratings for rotary seals?
Static ratings refer to the maximum pressure a seal can withstand without movement. Dynamic (rotary) ratings account for the added stresses of relative motion—frictional heating, cyclic deformation and extrusion risk—so dynamic limits are always lower than static catalog values.
2. When do I need back-up rings for rotary seals?
Use back-up rings when differential pressure and clearance geometry allow extrusion of the sealing material. If operating pressures regularly exceed the material's extrusion resistance or you observe extrusion in tests, incorporate hard PTFE or reinforced back-up rings and redesign the gland to limit gap paths.
3. Can a standard O-ring be used for high-pressure rotary sealing?
Standard O-rings alone are generally not ideal for continuous rotary service at high pressure. If used, they must be paired with backup rings and specifically designed for rotary duty. Specialized rotary O-ring profiles or PTFE-based rotary seals are typically preferable.
4. What shaft surface finish is required for PTFE-filled rotary seals?
Aim for Ra ≤ 0.4 µm for PTFE-filled seals to minimize abrasive wear and ensure a stable lubricating film. Exact targets depend on filler type, speed and lubrication conditions.
5. How should I validate a high-pressure rotary seal before full-scale deployment?
Run bench tests replicating pressure cycles, surface speed, temperature and media. Measure leakage, torque and wear over time. If possible, perform a field pilot under real conditions and inspect seals after a defined runtime. Require test reports from suppliers, including PV limits and extrusion tests.
6. How do filled PTFE variants compare for high-pressure rotary seals?
Bronze-filled PTFE improves mechanical strength and thermal conductivity; carbon-filled reduces friction; glass-filled increases rigidity. Selection depends on the balance of friction, wear resistance and chemical compatibility required for your application.
Contact and product inquiry (CTA)
Need a custom solution? Contact Polypac for high-pressure rotary seals
If you are designing or sourcing rotary seals for high-pressure applications, consult with an experienced manufacturer early. Polypac offers custom rotary seals, filled PTFE solutions, and full testing support. To discuss materials, request test data, or obtain a quotation for custom rotary seals and backup ring assemblies, contact Polypac's technical sales team or visit our product pages to view O-Rings, Rod Seals, Piston Seals, End Face Spring Seals, Scraper Seals, Rotary Seals, Back-up Rings and Dust Rings.
References
- SKF — Seals. SKF product and technical information on sealing solutions. https://www.skf.com/products/seals (Accessed 2025-11-23).
- Parker Hannifin — Seals & Sealing Technology. Manufacturer technical resources and O-ring handbook. https://www.parker.com (Accessed 2025-11-23).
- Engineering Toolbox — Hydraulic seals. Overview of hydraulic seal behavior and common design considerations. https://www.engineeringtoolbox.com/hydraulic-seals-d_1218 (Accessed 2025-11-23).
- Chemours (PTFE) — Fluoropolymer material datasheets and product specs. https://www.chemours.com (Accessed 2025-11-23).
- ISO — Seal design and testing standards (search for rotary seal related standards). https://www.iso.org (Accessed 2025-11-23).
For bespoke design support and validated high-pressure rotary sealing solutions, get in touch with Polypac today.

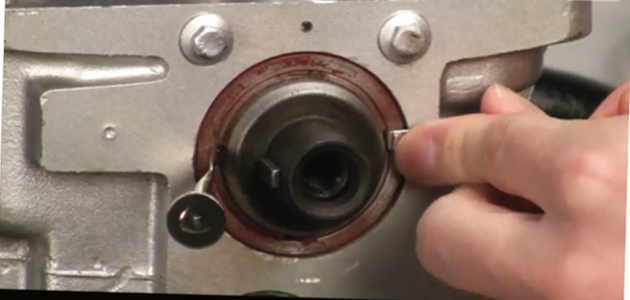

Top 7 Oil Seal Installation Mistakes—and How to Avoid Them
