Everything You Need to Know About Hydraulic Seals

Introduction: Why hydraulic seals matter

Hydraulic seals are critical components that prevent fluid leakage and maintain pressure in hydraulic systems. Whether you are specifying seals for construction equipment, industrial presses, or mobile hydraulics, choosing the right hydraulic seals ensures system efficiency, reduces downtime, and lowers life-cycle costs. This article explains hydraulic seals, compares common seal materials, outlines failure modes, and offers practical selection and maintenance advice—especially useful for buyers and engineers searching for a reliable hydraulic seal manufacturer or oil seal supplier.

What are hydraulic seals and how do they work?

Hydraulic seals are mechanical elements placed between moving or static parts to contain hydraulic fluid and keep contaminants out. They work by creating a controlled interference or contact pressure against mating surfaces (rod, piston, cylinder bore) so that fluid pressure is contained. Common hydraulic seal types include rod seals, piston seals, wipers (scrapers), guide rings, and static seals like O-rings. Correct geometry, material choice, and installation are essential for seal performance under pressure, temperature, and speed conditions.

Main types of hydraulic seals and their applications

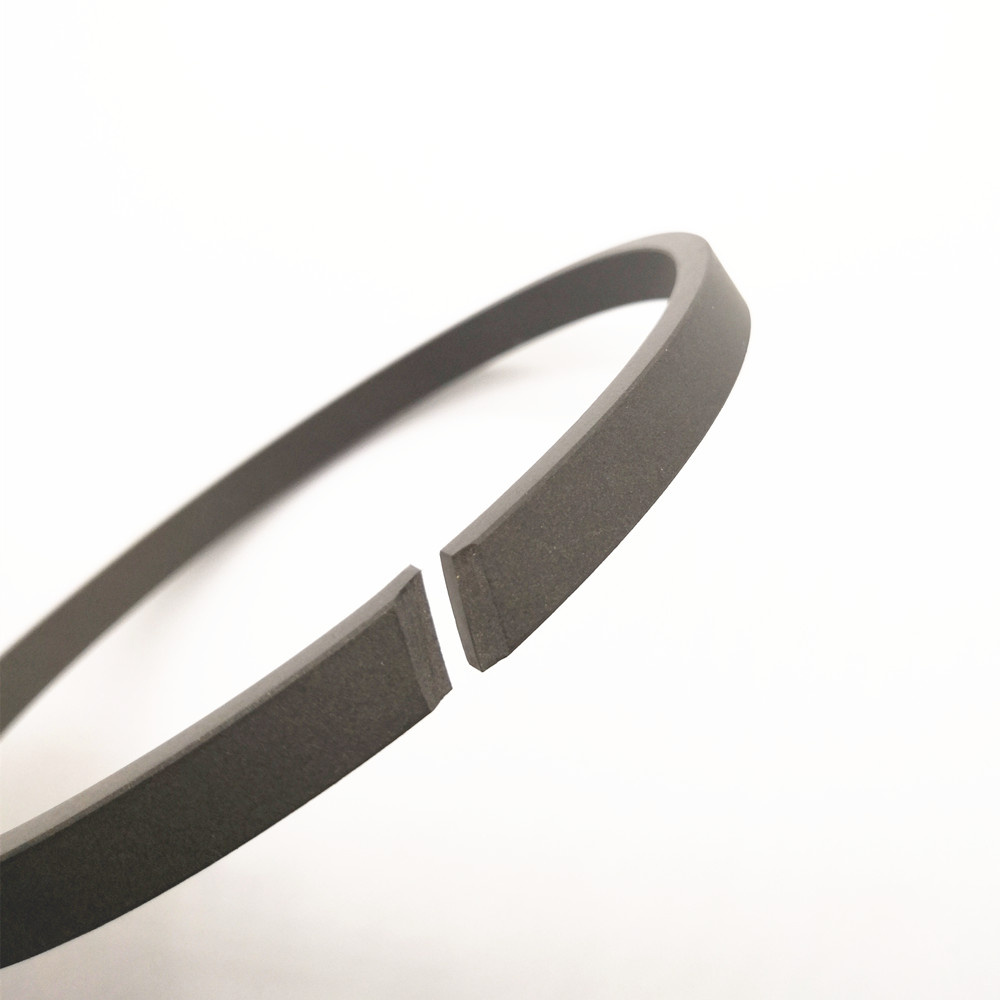

Hydraulic systems use several specialized seals depending on function and location. Rod seals (dynamic) prevent leakage along the rod. Piston seals maintain pressure between cylinder chambers. Wipers remove contaminants from the rod surface. Static seals and O-rings fill gaps between stationary parts. Guide rings control piston/rod alignment and prevent metal-to-metal contact. Selecting the suitable type directly impacts system longevity and maintenance intervals.

Hydraulic seal materials: properties and suitability

Material selection is the most important factor when choosing hydraulic seals. Different elastomers and polymers offer specific chemical compatibility, temperature ranges, and wear resistance. Commercial buyers often search for suppliers who can provide seals in NBR, FKM, EPDM, silicone, FFKM, and filled PTFE variants. Polypac, as a hydraulic seal manufacturer and oil seal supplier, produces a wide range of materials and custom solutions to match these requirements.

Material comparison: temperature, chemical resistance and typical uses

Below is a concise comparison of common seal materials to help you decide which hydraulic seals suit your application. This table is practical when evaluating replacement seals or ordering custom seals from a manufacturer.

How operating conditions affect hydraulic seal choice

Key operating parameters include system pressure, fluid type, temperature, sliding speed, and contamination level. For example, high system pressures (over 300 bar) typically require reinforced piston seals or seals with backup rings to prevent extrusion. Abrasive environments need wipers and low-friction materials (e.g., filled PTFE) to resist wear. Understanding these conditions helps you procure the right hydraulic seals from a reliable manufacturer and avoid premature failure.

Common failure modes of hydraulic seals and how to prevent them

Hydraulic seals commonly fail due to extrusion, abrasion, chemical attack, thermal degradation, and improper installation. Prevention includes choosing the correct material, specifying backup/anti-extrusion rings for high pressure, ensuring proper surface finish and tolerances, using correct lubrication, and following correct installation procedures. Regular inspection and condition-based maintenance extend seal service life and reduce downtime.

Why surface finish and tolerances matter for hydraulic seals

Seals rely on precise contact with mating surfaces. Rods and bores must meet recommended surface roughness (Ra) and roundness to ensure effective sealing without excessive wear. Typical recommended rod surface finish for rod seals is Ra 0.2–0.8 µm with Rz 1–6 µm, but exact specifications depend on material and application. Polypac's advanced production and testing equipment helps maintain tight tolerances for both custom rubber rings and PTFE seals.

Custom hydraulic seals: when and why to order them

Standard seals suit many applications, but custom hydraulic seals are necessary for unique geometries, special media, extreme temperatures, or regulatory safety requirements. Polypac specializes in custom sealing solutions and sealing material development, offering molded and machined seals, such as custom O-rings and PTFE components tailored for special working conditions. Custom seals can reduce leakage risk and extend time between service intervals.

Polypac: manufacturing capabilities and product range

Polypac is a scientific and technical hydraulic seal manufacturer and oil seal supplier specializing in seal production, sealing material development, and customized sealing solutions for special working conditions. With a custom rubber ring and O-ring factory covering more than 10,000 square meters and an 8,000 square meter factory space, Polypac uses advanced production and testing equipment. Founded in 2008, Polypac began with filled PTFE seals (bronze, carbon, graphite, MoS2, glass) and now offers O-rings in NBR, FKM, silicone, EPDM, and FFKM. The company collaborates with universities and research institutions to develop durable hydraulic seals for demanding applications.

Testing and quality control for hydraulic seals

Reliable suppliers implement dimensional checks, compression set tests, hardness testing (Shore A), and material compatibility testing with hydraulic fluids. Dynamic and static leak testing under pressure cycles are important for validating seal assemblies. Polypac's in-house testing equipment and partnerships with research institutions help ensure that hydraulic seals meet performance expectations in real-world conditions.

Maintenance best practices for longer seal life

To maximize seal life: keep hydraulic fluid clean and properly filtered, maintain correct fluid viscosity and temperature, inspect seals during scheduled maintenance, replace wipers and guides when worn, and use correct installation tools to avoid nicking seal lips. Also, maintain proper storage conditions for spare seals (cool, dark, original packaging) to prevent ozone and heat degradation.

Cost vs. value: how to select seals for lifetime performance

Lowest initial cost for seals can lead to higher lifetime expense due to frequent failures and downtime. Consider total cost of ownership: material performance, maintenance intervals, and risk of system contamination or failure. High Quality materials (FFKM, filled PTFE) and robust designs often pay back by extending service life in harsh environments. Polypac’s custom solutions can help balance performance and cost by tailoring materials and designs to application needs.

How to work with a hydraulic seal manufacturer

Provide clear specifications: operating pressure, fluid type, temperature range, sliding speed, dimensions, surface finish, and expected life. Request material certificates, test reports, and prototypes. A good supplier will advise on design changes to reduce cost and improve reliability. Polypac’s collaborative approach and R&D partnerships enable product development for special conditions, supporting both standard orders and bespoke projects.

Quick checklist for buying hydraulic seals

When procuring hydraulic seals, check: 1) correct seal type (rod, piston, wiper, O-ring), 2) compatible material for fluid and temperature, 3) pressure and speed limits, 4) surface finish/tolerances, 5) supplier testing and quality controls, 6) delivery lead time and support for custom tooling. This checklist reduces the risk of ordering the wrong hydraulic seals and ensures you get reliable performance from your oil seal supplier.

Conclusion: Making the right hydraulic seal choice

Choosing the right hydraulic seals requires understanding materials, system conditions, and long-term costs. Whether you need standard O-rings or custom-filled PTFE piston seals, prioritize manufacturers that provide material science expertise, rigorous testing, and collaborative engineering. Polypac’s decades of focus on PTFE variants and elastomer O-rings, combined with modern production facilities, makes it a strong partner for customers seeking durable, high-performance hydraulic seals.

References and further reading

1. Parker Hannifin, O-Ring Handbook (technical reference for elastomer selection and dimensions)
2. ISO 3601-1:2012 (O-rings — Dimensions and tolerances)
3. Technical guides from major seal manufacturers (SKF, Trelleborg) on hydraulic seals and materials
4. Elastomer temperature and chemical compatibility charts from polymer suppliers
5. Industry white papers on hydraulic seal failure analysis and best practices

Frequently Asked Questions

What are the most common materials used for hydraulic seals and why?
NBR, FKM, EPDM, silicone, FFKM, and PTFE (with fillers) are most common. They are chosen for their fluid compatibility, temperature tolerance, wear resistance, and cost balance. NBR for general hydraulic fluids; FKM for high-temp/chemical resistance; PTFE for low friction and abrasive fluids.

How do I know if a seal is failing or needs replacement?
Signs include external fluid leakage, decreased system pressure, increased operating temperature, visible wear on seals or rods, and contamination inside the hydraulic reservoir. Regular inspection schedules help detect early signs.

Can I replace a hydraulic seal with a generic O-ring?
Not always. Dynamic sealing (rod, piston) often requires specially profiled seals or PTFE-based designs. Generic O-rings may work in static positions but will fail quickly under dynamic, high-pressure conditions.

What maintenance steps reduce hydraulic seal failure?
Keep fluid clean with proper filtration, maintain recommended fluid temperature and viscosity, replace worn wipers and guide rings, use correct installation tools, and store spare seals properly.

When should I request a custom hydraulic seal from a manufacturer?
Request custom seals when the application has unusual temperatures, aggressive fluids, limited space, high speed/pressure, or when standard seals show frequent premature failure. Custom designs address unique extrusion, wear, and compatibility challenges.

How do I verify the quality of seals from a new supplier?
Ask for material certificates, test reports (compression set, dynamic leak test), sample parts, and references from similar projects. Verify manufacturing capabilities, equipment, and any academic or institution partnerships that support R&D.
