High-Performance Machinery Seal by Polypac

Polypac High-Performance Machinery Seal delivers reliable, long-lasting sealing for hydraulic and industrial equipment. Precision-made from advanced materials with custom options for harsh conditions.

Get a free quote

Product Description

Overview

The High-Performance Machinery Seal from Polypac is engineered for demanding industrial and hydraulic applications. Designed to offer durable leakage protection, this seal combines advanced materials, strict quality control, and customizable options to fit a wide range of machines and operating environments.

Why Choose Polypac Seals

Polypac is a trusted seal manufacturer and oil seal supplier. Our factory covers over 10,000 square meters, equipped with modern production and testing facilities. Since 2008, we have developed expertise in filled PTFE and a broad range of elastomers, including NBR, FKM, silicone, EPDM, and FFKM. We work closely with universities and research institutions to ensure our products meet high standards.

Built for Reliability

Each High-Performance Machinery Seal undergoes rigorous testing to ensure resistance to wear, pressure, and temperature swings. The result is consistent performance and extended seal life, reducing maintenance costs and downtime.

Material Options and Customization

Choose from filled PTFE variants and elastomers to match your working conditions. We offer customization for size, hardness, and compound to suit special operating environments like high temperature, aggressive fluids, or heavy load applications.

Applications

These seals are ideal for hydraulic cylinders, pumps, compressors, gearboxes, and other heavy machinery. They are suitable for industries such as construction, agriculture, oil and gas, marine, and manufacturing.

Simple Installation and Maintenance

Polypac seals are designed for straightforward installation with clear orientation and minimal preparation. Routine inspection and proper lubrication extend service life. When replacement is needed, our team provides fast technical support and matched parts to restore equipment quickly.

Trust and Support

With decades of material science and manufacturing experience, Polypac delivers seals you can rely on. Our technical team offers guidance on material selection, sizing, and installation to ensure optimal performance.

Contact Polypac for a quote or to discuss a custom sealing solution tailored to your machinery.

Product Images

Q&A

How important is surface finish on the metal parts that contact the seal?

Extremely important. A rough surface will abrade and wear out the seal quickly, causing leaks. A finish that is too smooth can prevent a lubricating film from forming. A typical recommended surface finish for dynamic applications is 0.2 to 0.8 μm (8-32 μin) Ra.

How do I choose the right material for my sealing application?

Material selection depends on four key factors: Media: What fluid or gas will the seal contact? (e.g., petroleum oil, water, chemicals, steam) Temperature: What is the minimum and maximum operating temperature? Pressure: What is the system's operating pressure? Are there pressure spikes? Application: Is it a static, dynamic, or rotary seal? Example: NBR (Buna-N) is excellent for standard hydraulic oil, while FKM (Viton®) is needed for high temperatures or aggressive chemicals.

How can I prevent seal damage during installation?

Use Tools: Always use dedicated installation tools (e.g., picks, cones, guides). Lubricate: Always lubricate the seal and the contact surface. Protect Sharp Edges: Cover sharp threads and edges with tape or use an installation sleeve. Check the Groove: Ensure the installation groove is clean, deburred, and undamaged.

When should I use a spring-energized seal instead of a standard elastomeric seal?

Consider a spring-energized seal (e.g., GSF, SPN types) for demanding applications involving: Extreme Temperatures (below -30°C or above +200°C) Aggressive Chemicals that elastomers can't handle Very Low Leakage or "Zero Leakage" requirements Poor Lubricity or dry running conditions The internal spring maintains constant sealing force, compensating for wear and system variables.

If you have any questions about our goods or services, please feel free to contact us.

Leave a Message

PRODUCTS

dbde24e1-4012-47b6-8db4-e89ee4ca5a70

Polypac Industrial Technology Co.,Ltd

+86 189 2463 6168

rose@dmsseals.com

No. 5, Hegui Mid Road, Hegui Industrial Park, Lishui Town, Nanhai District, Foshan City, Guangdong Province, P.R. China.

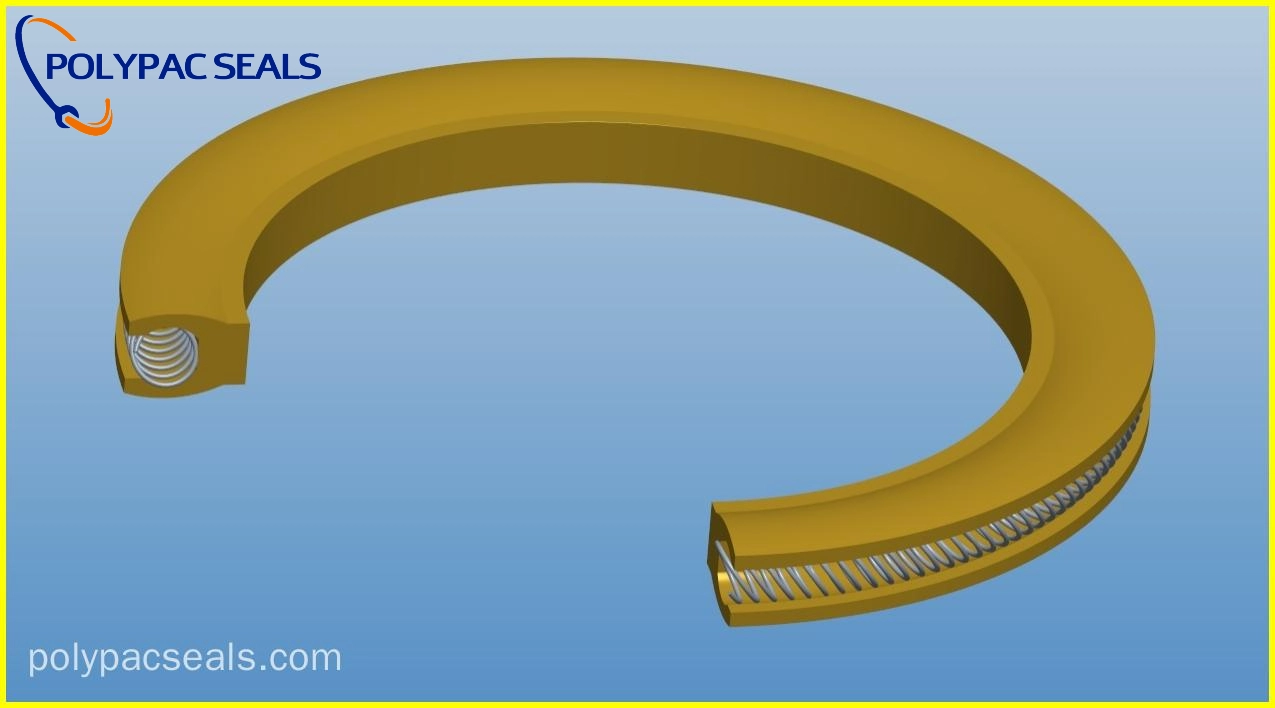

FSVO-X Series Rod Seal | Enhanced Performance for Extreme Conditions
