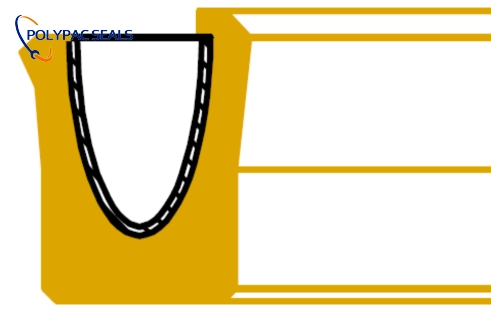

FSK-V Bidirectional Piston Seal for Construction and Industrial Machinery
Polypac’s FSK-V Bidirectional Piston Seal ensures superior sealing in construction and industrial machinery. This high-performance step seal offers reliable bidirectional sealing, minimizing leakage and enhancing durability under heavy-duty conditions. Ideal for demanding piston applications.
We ensure every transaction is encrypted and protected, giving you complete peace of mind.
From inquiry to delivery, our team responds quickly and provides consistent, dependable support.
Details
1.Application and properties
Suitable for one-way and reciprocating piston seal. It has good sealing performance at high, medium and low
pressure. The work pressure adaptation range is wide, and the pressure resistance can be enhanced by adding back
up rings.
The friction coefficient is small, and the contact pressure with the mating surface is low. The friction force with the
mating surface is the smallest in all types of seals. It can work with or without lubrication, has good wear resistance,
and long service life. The working medium of the sealing sleeve is widely adaptable, and other chemicals do not react
with it except soluble alkali metal, high temperature fluorine gas and chlorine trifluoride.
Operating temperature range from -200°C to +250°C, and it is used for special working conditions such as high
speed, extremely low speed, and micro-stroke
Suitable for aviation, military and industrial sealing groove size. Small installation groove and the groove is open or
semi-open. The standard product section size is small, and can be installed in the same level O-ring groove.
Flexible size change, wide adaptability, can be designed for any size of the installation groove of the seal, non
standard part design is very convenient.
2. Standard material
Sealing ring: filled PTFE
Spring: SUS301, 302, 304, 316 or 718 Default use SUS301, please specify if there are special requirement/400A
