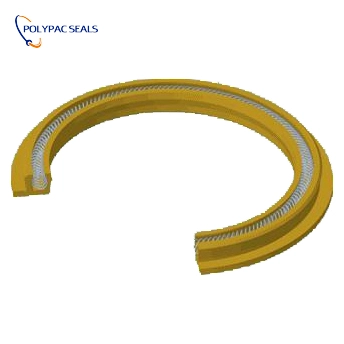

FSXL-X Extreme-Duty Vented Rod Seal for Mining and Heavy Industrial Machinery

Polypac’s FSXL-X Extreme-Duty Vented Rod Seal offers superior durability for mining and heavy industrial machinery. Designed as a heavy duty hydraulic rod seal, it ensures reliable performance and extended service life. Ideal for metric rod seals applications demanding maximum protection.

Get a free quote

Get the Product Catalog

Safe & Secure Payments

We ensure every transaction is encrypted and protected, giving you complete peace of mind.

Fast & Reliable Service

From inquiry to delivery, our team responds quickly and provides consistent, dependable support.

Quality & Trusted Solutions

With certified systems and strict quality control, we deliver sealing products you can trust.

Details

1. Application and properties

Suitable for rotary one-way rod seal, and can also be used for reciprocating rod seal with rotary compound

movement, with excellent sealing performance in high, medium and low pressure situations.

The friction coefficient is small, and the contact pressure with the mating surface is low. It can work with or without

lubrication, and it is wear-resistant with a long service life. The working medium of the sealing sleeve is widely

adaptable, and other chemicals do not react with it except soluble alkali metal, high temperature fluorine gas and

chlorine trifluoride..

Operating temperature range from -200°C to +250°C. It can be used in special working conditions such as

extremely low speed and micro-stroke,.

Suitable for aerospace, military and industrial sealing groove sizes, with small installation grooves and open

grooves.

2. Standard material

Sealing ring: filled PTFE

Spring: SUS301, 302, 304, 316 or 718 Default use SUS301, please specify if there are special requirement/APS
