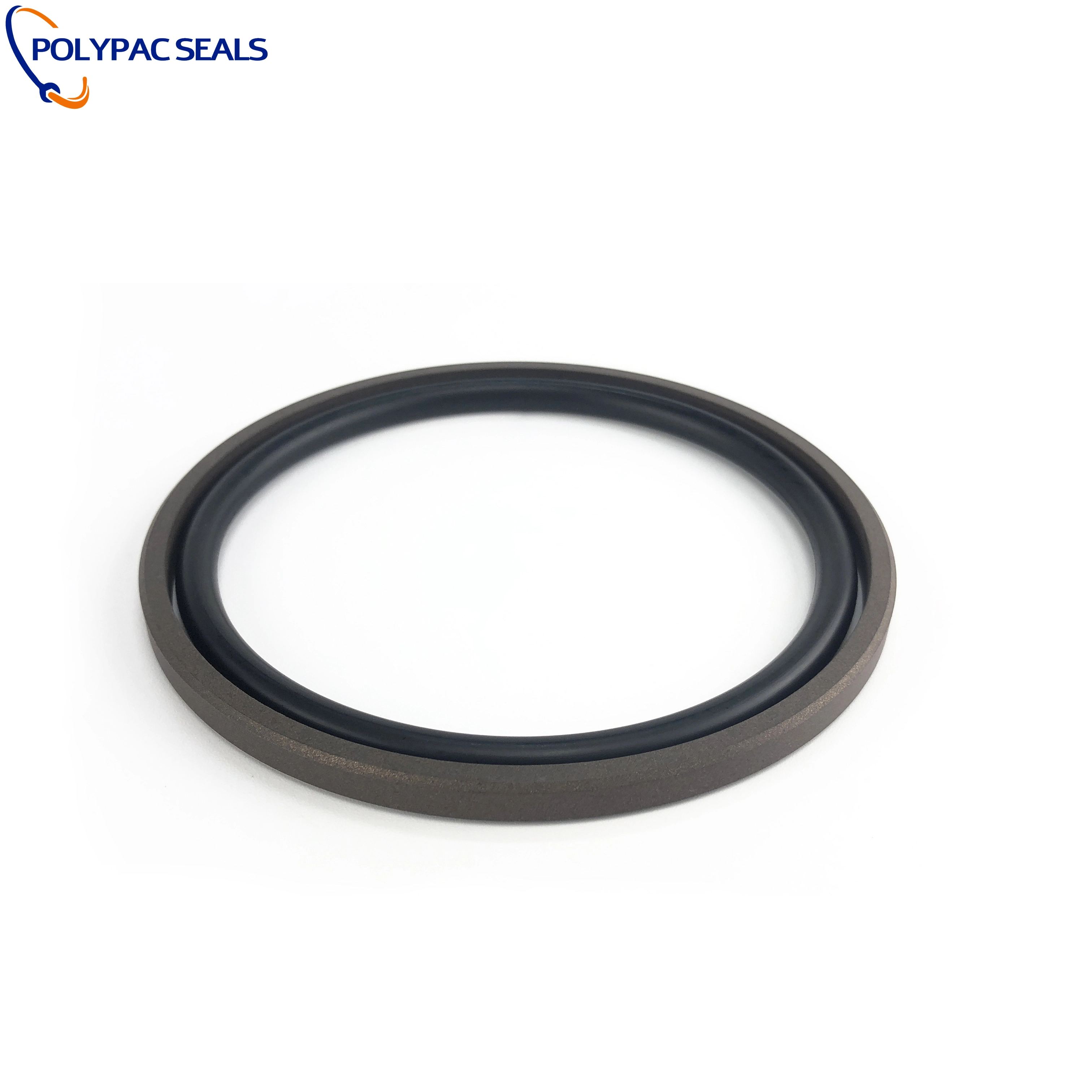

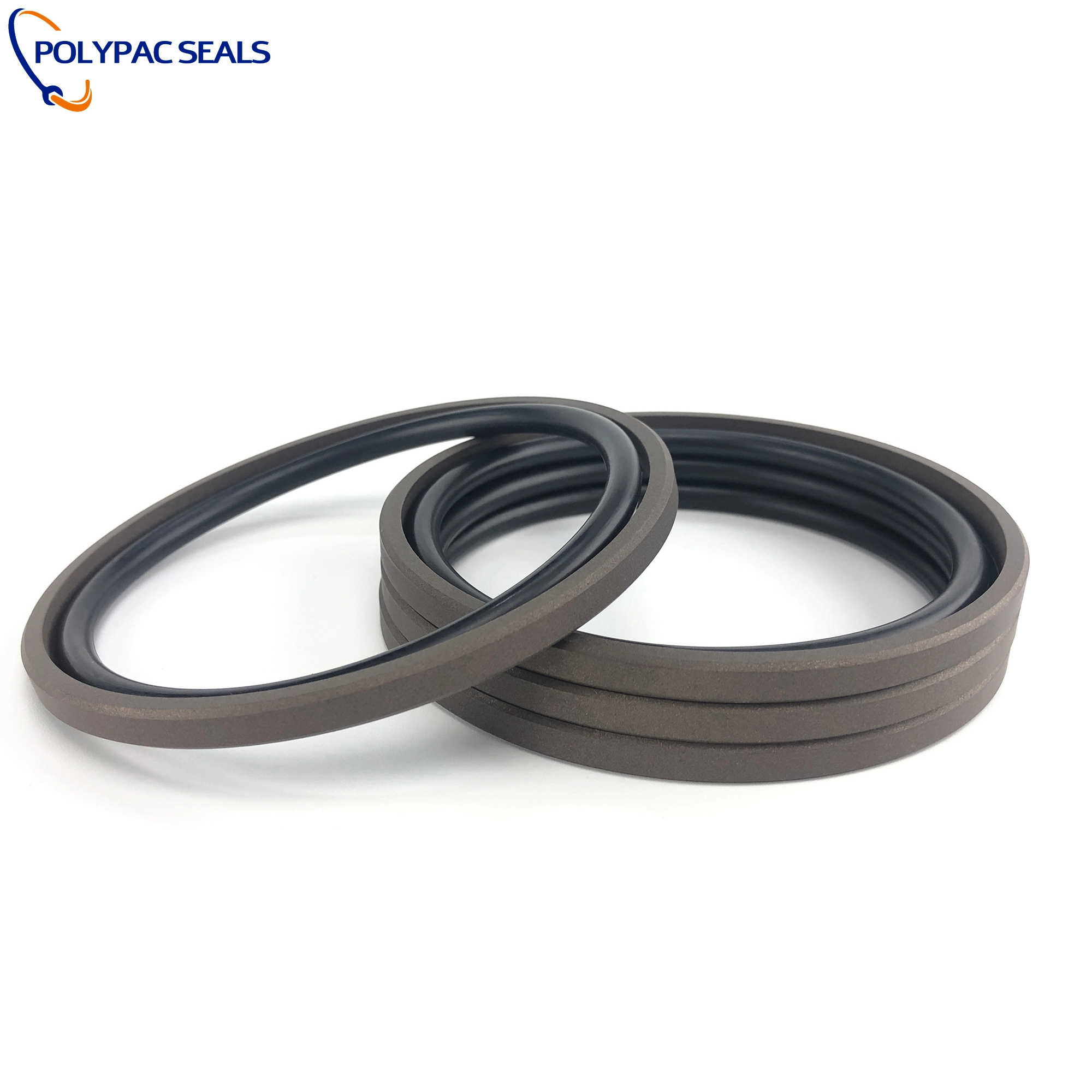

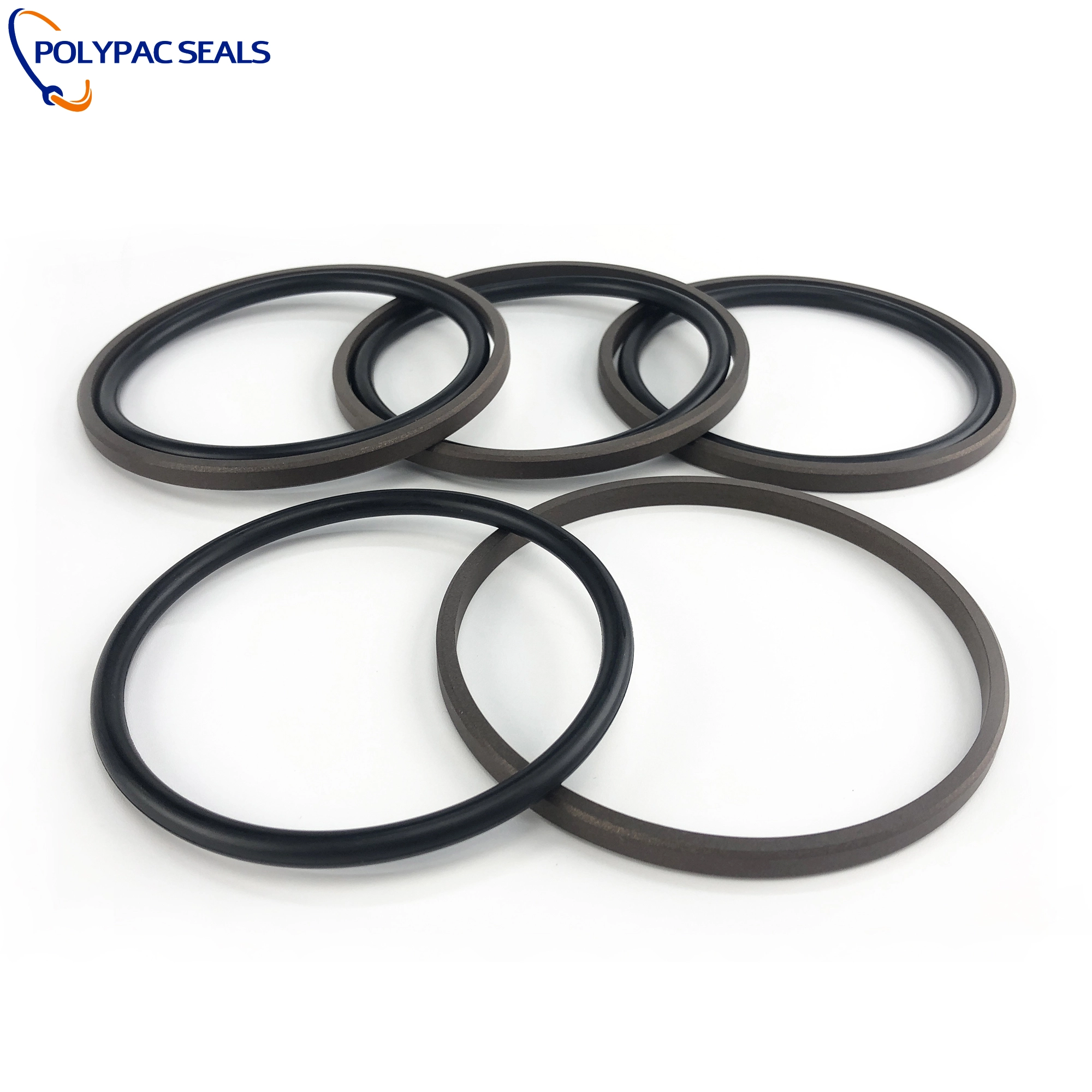

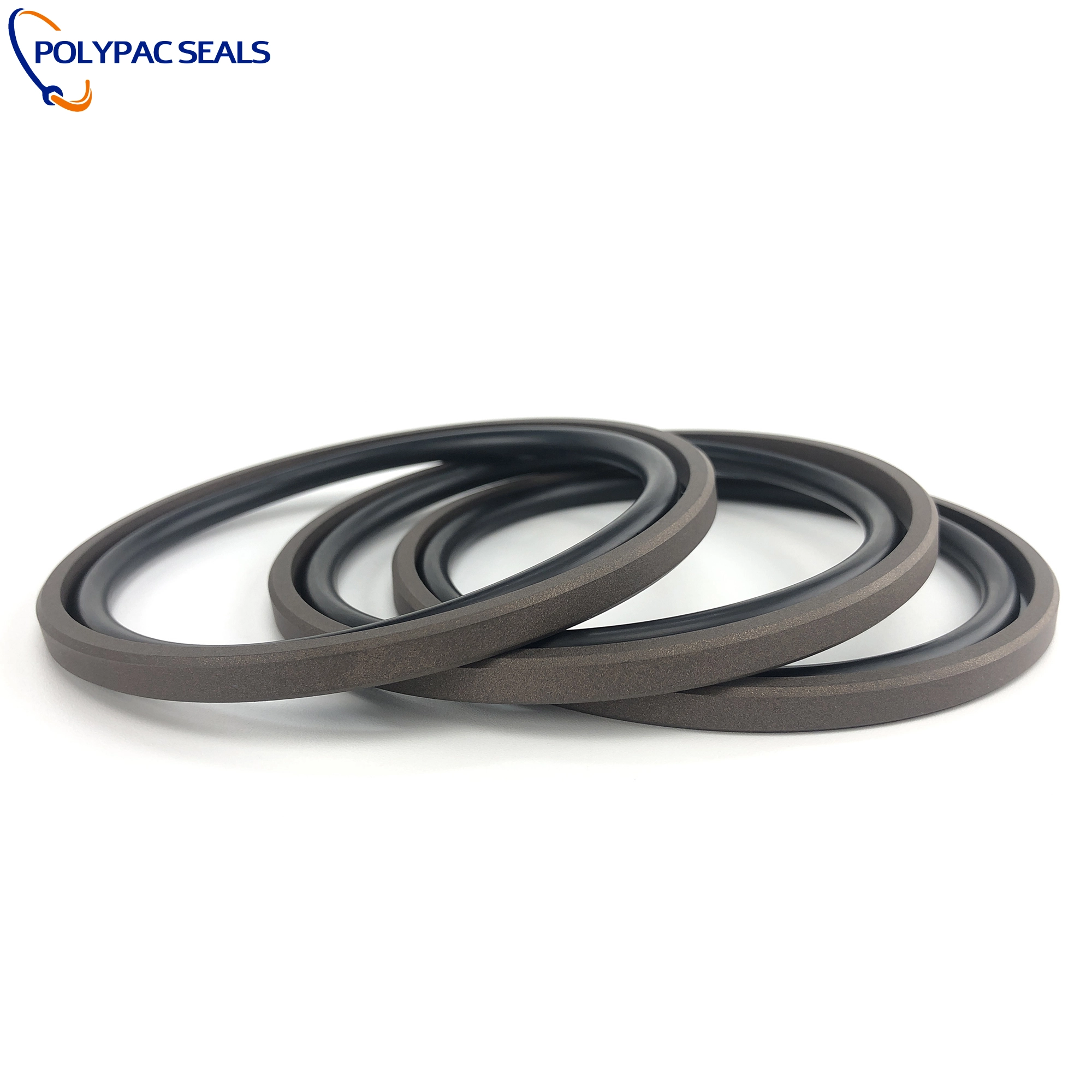

GSF Series Piston Seal | Compact Bidirectional Seal with Low Friction
Polypac GSF Series Piston Seal offers a compact, bidirectional piston seal design with low friction for enhanced performance. Ideal for optimized sealing in hydraulic cylinders, this compact piston seal ensures durability and efficient operation in demanding applications.
We ensure every transaction is encrypted and protected, giving you complete peace of mind.
From inquiry to delivery, our team responds quickly and provides consistent, dependable support.
Details
1. Application and properties
Suitable for two-way piston seal, especially for fast response cylinders in control oil cylinders, servo oil cylinders,
machine tools, and construction machinery.
It has a low friction coefficient, wear resistance, and a long service life. It can work with or without lubrication and
can be used for non-oil lubrication cylinder seals. The adaptability to working media and working temperature range
can be changed by replacing the material of the O-ring. Can be used in special working conditions such as extremely
high speed, extremely low speed, micro-stroke, etc.
Suitable for integrated piston, and the installation groove is small.
Complies with the standards of GB/T 15242.1-94 and GB/T 15242.3-94.
Good extrusion resistance and larger installation clearances than general seals.
Different cross-section products can be selected according to the actual working pressure value. Generally, the
larger the working pressure, the larger the cross-section product should be selected.
2. Standard material

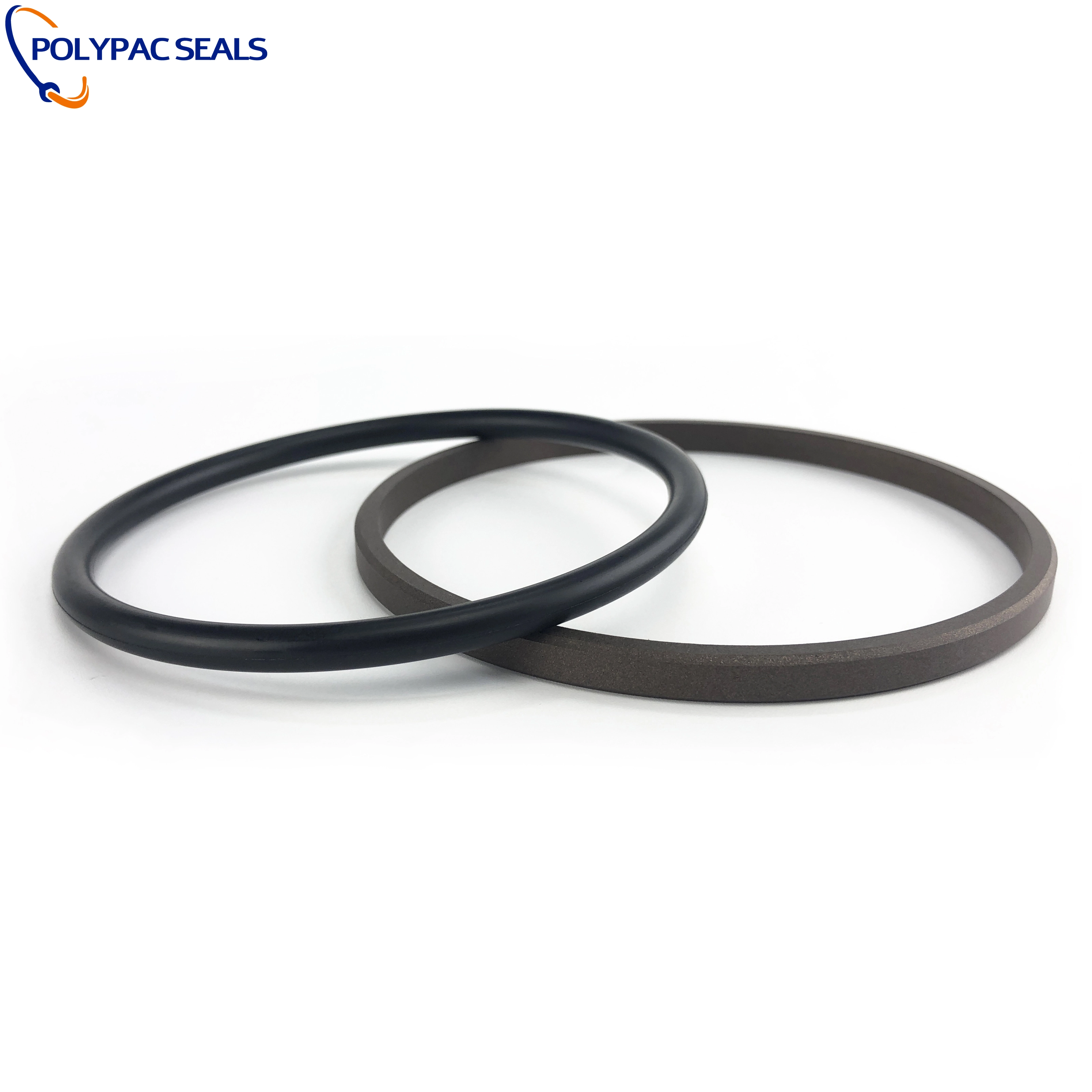

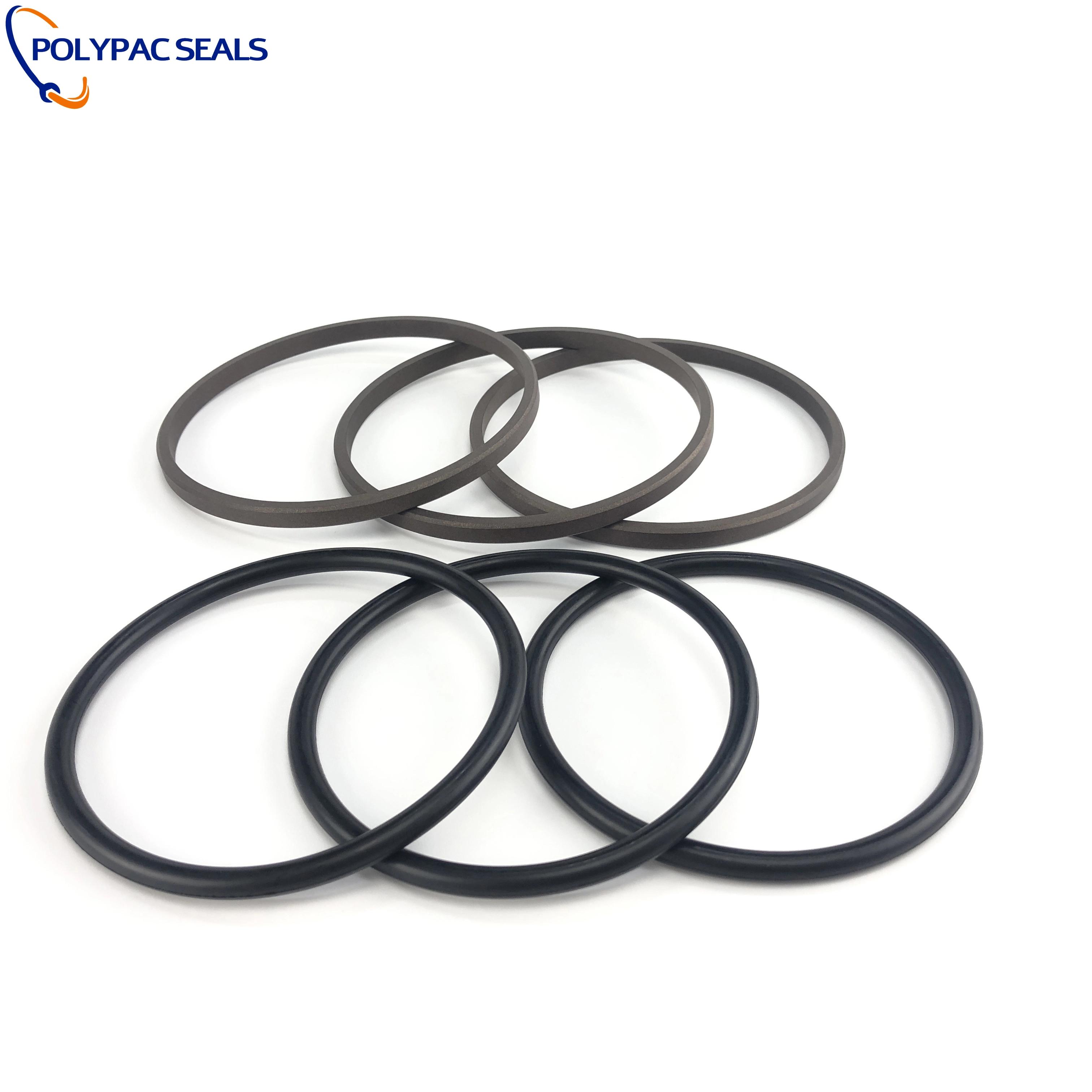

Sealing ring: filled PTFE
O-Ring: NBR / FKM
