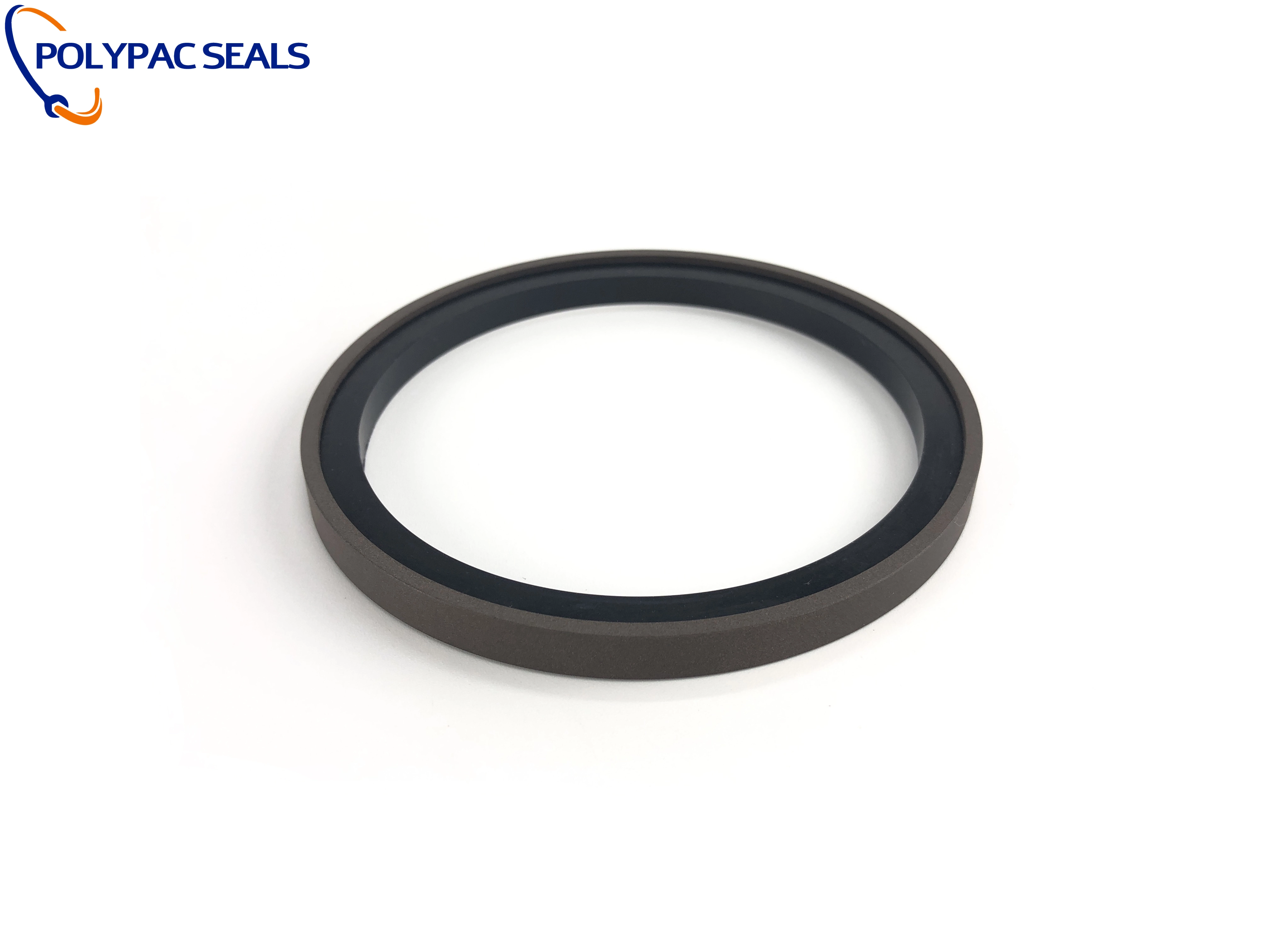

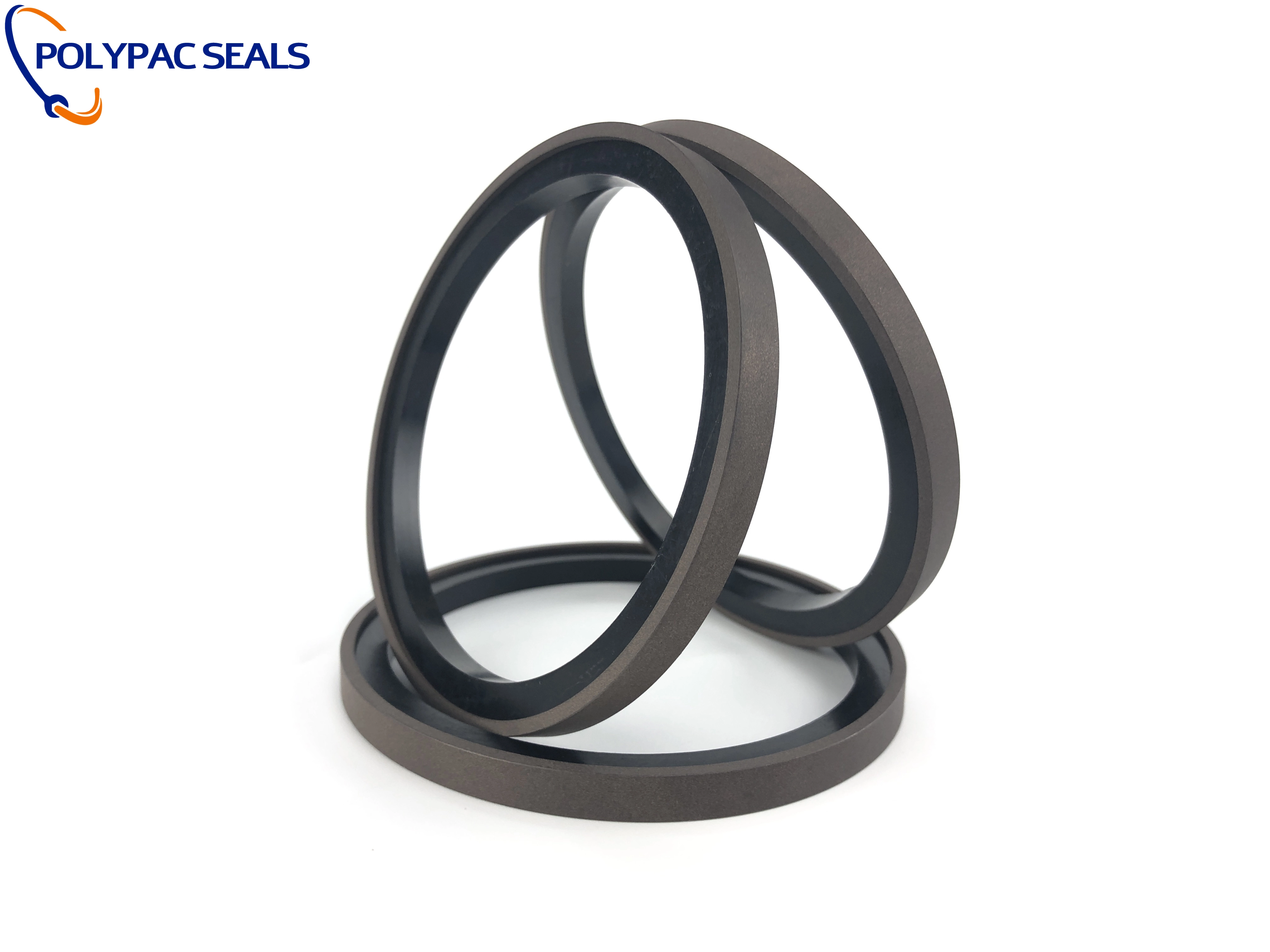

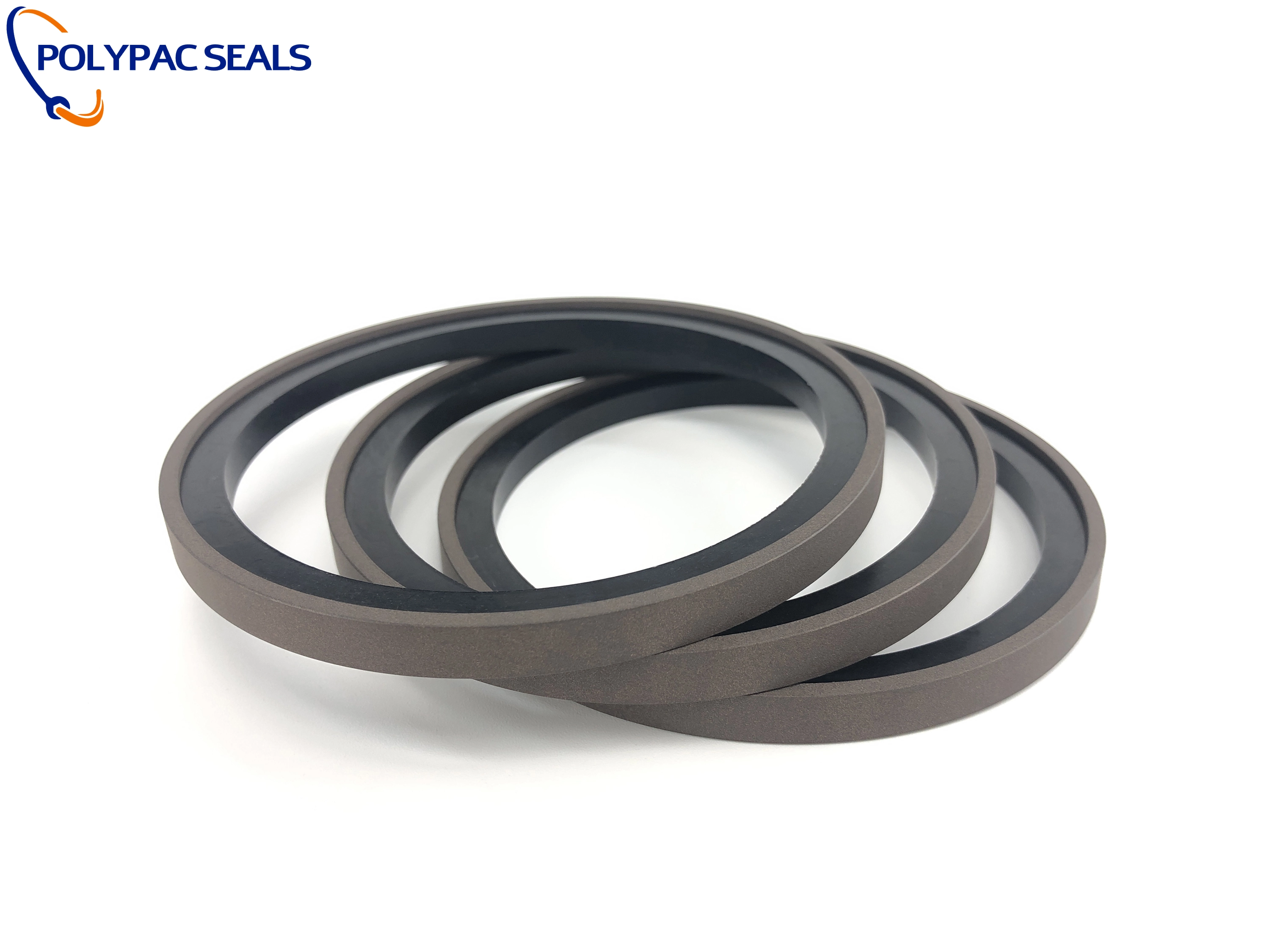

SPG Bidirectional Piston Seal for Excavators and Industrial Machinery

Polypac’s SPG Bidirectional Piston Seal ensures superior sealing performance for excavators and industrial machinery. Designed as a reliable hydraulic cylinder piston seal, it excels in harsh conditions, boosting efficiency in manufacturing machinery. Trust our industrial piston seals for durability and precision.
Get a free quote
Get the Product Catalog

Safe & Secure Payments

We ensure every transaction is encrypted and protected, giving you complete peace of mind.

Fast & Reliable Service

From inquiry to delivery, our team responds quickly and provides consistent, dependable support.

Quality & Trusted Solutions

With certified systems and strict quality control, we deliver sealing products you can trust.

Details

1. Application and properties

  Suitable for two-way piston seal, especially for heavy-duty quick response hydraulic cylinders and the maximum
working pressure is about 40Mpa.
  It has a small friction coefficient, wear resistance, and long service life. The adaptability and working temperature
range of the working medium can be changed by replacing the material of the square ring.
  It can be used in special working conditions such as extremely high speed and extremely low speed.
  Suitable for integrated pistons, and the installation groove is small, which is conducive to design cylinder size.
  Compliant with GB/T 15242.1-94 and GB/T 15242.3-94 standards.
  Good extrusion resistance and a larger installation clearance than general sealing components.

2. Standard material

  Sealing ring: filled PTFE
  O-Ring: NBR / FKM
