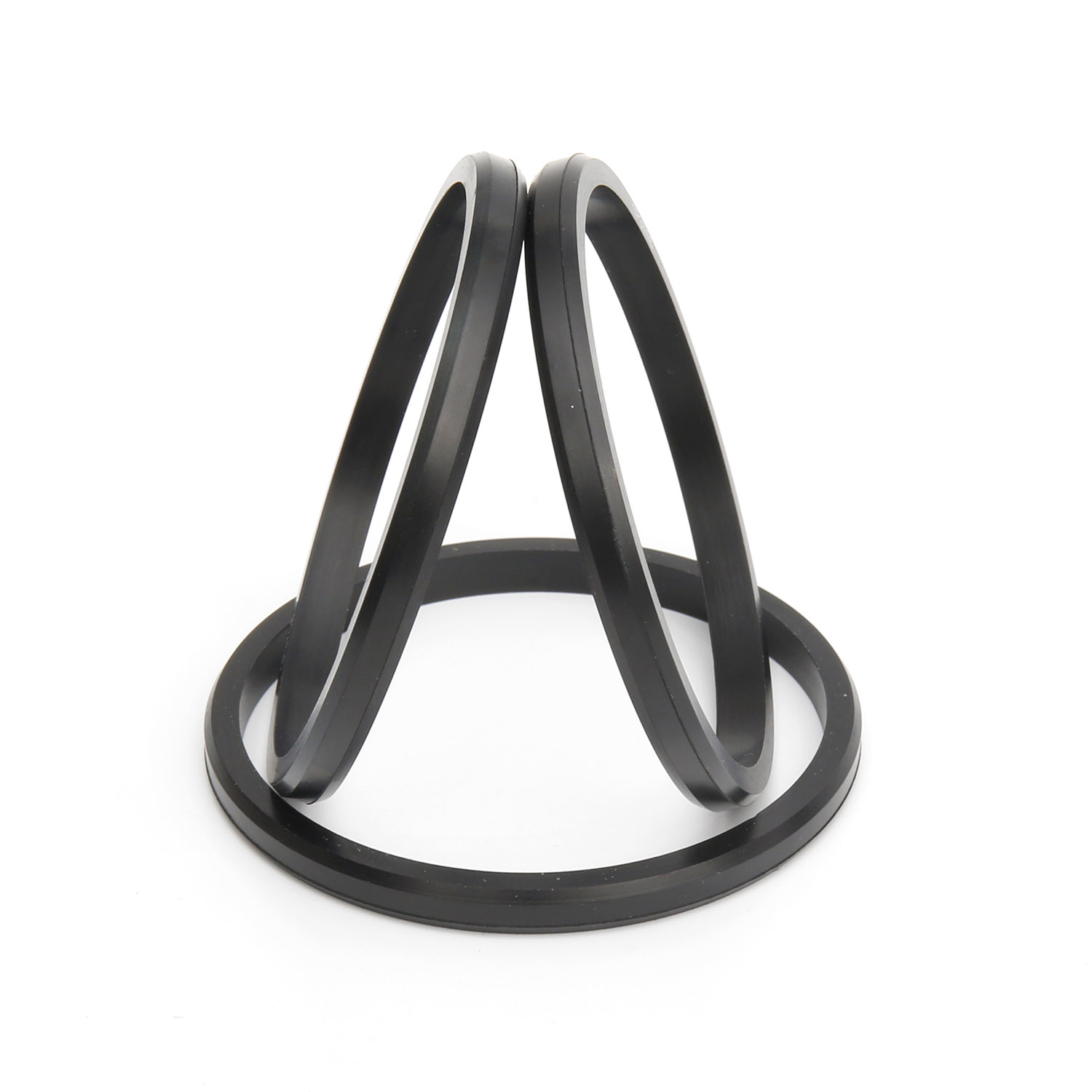

Why temperature matters for rod seals

Rod seals are a critical component in hydraulic and pneumatic cylinders. Their ability to sustain sealing performance depends heavily on temperature. Too low a temperature can make elastomers hard and brittle, increasing the risk of extrusion and cracking. Too high a temperature accelerates chemical degradation, reduces tensile strength, and increases compression set, leading to leakage. For engineers specifying rod seals, understanding material-specific temperature limits is essential to ensure system reliability, life expectancy, and cost-effective maintenance.

How temperature affects rod seals: practical mechanisms

At the material level, temperature influences rod seals in several ways:

• Elasticity and glass transition: Elastomers have a glass transition temperature (Tg); below Tg they stiffen and lose flexibility, increasing leakage and wear in dynamic rod seals.
• Chemical degradation and oxidation: Elevated temperatures accelerate chain scission and crosslinking, causing hardening, embrittlement, or sticky residues.
• Compression set and permanent deformation: Heat encourages relaxation of compressed seals, reducing sealing force and causing leaks over time.
• Friction and heat generation: Dynamic rod seals generate frictional heat; combined with ambient heat this can push the seal beyond its safe range.
• Swelling and fluid compatibility: Temperature affects how oils and hydraulic fluids interact with the seal compound, changing dimensions and mechanical properties.

Engineers must account for both continuous operating temperatures and short-term spikes (start-up, emergency runs). A conservative selection that includes a safety margin for spikes will improve service life.

Common rod seal materials and their temperature ranges

Below is a comparison of frequently used rod seal materials with typical operating ranges, short-term limits, and performance notes. These are typical industry ranges; specific compounds and fillers can shift limits.

Sources for the ranges above include manufacturer technical handbooks and material datasheets (see citations at the end). Note that fillers (carbon, MoS2, bronze) and polymer grade significantly affect limits.

How to choose rod seals for temperature extremes

Selecting the right rod seal material requires balancing temperature performance with pressure, dynamic speed, fluid compatibility and cost. Practical guidance:

• For high continuous temperatures (>150°C): consider PTFE-based seals or FFKM for dynamic rods where elasticity still matters. FKM is often chosen up to ~200°C.
• For very high chemical and temperature exposure: FFKM offers the broadest chemical and heat resistance, albeit at much higher cost.
• For cryogenic or very low temperatures: PTFE and silicone maintain flexibility; however, for dynamic high-pressure rods PTFE with supportive backup rings is preferred.
• For abrasive or high-wear environments: polyurethane is excellent up to its temperature limit (~80°C). Outside that range use PTFE compounds with appropriate fillers.
• For oil-based hydraulic systems at moderate temps: NBR is cost-effective up to ~100°C; HNBR is better if you expect higher temp or ozone exposure.

Always check compound-specific datasheets and consider the combined effect of temperature and system pressure, as extrusion risk increases with temperature-induced softening.

Design and testing considerations for temperature-sensitive rod seals

To ensure reliable performance, follow these steps:

• Define operating envelope: continuous temp, short-term spikes, rod speed, pressure, fluid type.
• Material selection matrix: match fluid compatibility and temp range; include safety margin of 10–25°C for spikes.
• Prototype testing: conduct temperature cycling, hot-oil aging, and dynamic endurance tests. Monitor compression set, leakage, friction, and wear.
• Use back-up rings and proper gland design when using low-elasticity materials (PTFE) to prevent extrusion at high pressure and elevated temperatures.
• Measure dynamic heating: factor in frictional heating from reciprocating motion; real operational temperatures at the seal may exceed ambient by 10–40°C depending on speed and lubrication.

Testing standards and methods: many OEMs follow guidelines from the Parker O-Ring Handbook, ISO test methods for elastomers, and supplier-specific aging protocols. Always record results and iterate compound or design as needed.

Polypac: capabilities and advantages in temperature-critical rod seals

Polypac is a scientific and technical hydraulic seal manufacturer and oil seal supplier specializing in seal production, sealing material development, and customized sealing solutions for special working conditions. Polypac's custom rubber ring and O-ring factory covers an area of more than 10,000 square meters, with a factory space of 8,000 square meters. Our production and testing equipment are among the most advanced in the industry. As one of the largest companies in China dedicated to the production and development of seals, we maintain long-term communication and cooperation with numerous universities and research institutions both domestically and internationally.

Founded in 2008, Polypac began by manufacturing filled PTFE seals, including bronze-filled PTFE, carbon-filled PTFE, graphite PTFE, MoS₂-filled PTFE, and glass-filled PTFE. Today, we have expanded our product line to include O-rings made from various materials such as NBR, FKM, silicone, EPDM, and FFKM. Polypac combines deep materials expertise with industry-scale manufacturing and R&D partnerships, enabling rapid development of high-temperature rod seals and customized compounds.

Core products and competitive strengths:

• O-Rings: wide material range, tight tolerances, and custom sizes
• Rod Seals: engineered for dynamic sealing performance across temperature ranges
• Piston Seals: high-pressure designs with low friction
• End Face Spring Seals: axial sealing for rotating components
• Scraper Seals / Dust Rings: durable contamination control
• Rotary Seals: lip and spring-energized variants for high-temp rotation
• Back-up Rings: extrusion protection for PTFE and low-elasticity seals
• Dust Ring: long-lasting environmental sealing

Polypac’s advantages for temperature-critical rod seals:

• Extensive PTFE and filled-PTFE experience for high-temp, low-friction applications
• In-house compound development to tune heat resistance, compression set, and wear
• Advanced testing equipment for hot-oil aging, dynamic cycle tests, and thermal cycling
• Collaborative R&D links with universities to validate materials under real-world thermal stress

If you need rod seals designed for unusual temperature profiles, Polypac can provide material recommendations, prototype molds, and validation testing to ensure your system operates reliably across its thermal envelope.

Maintenance, installation, and best practices for temperature-critical rod seals

Good maintenance and installation practices significantly extend seal life in temperature-sensitive applications:

• Proper storage: keep seals in cool, dark conditions; avoid UV and ozone exposure which compound high-temp degradation.
• Correct gland design: ensure appropriate squeeze and gland geometry for thermal expansion; include venting where thermal expansion of trapped air could cause issues.
• Use of back-up rings: for PTFE or thin-lip seals at high temperature and pressure, add back-up rings to prevent extrusion.
• Lubrication: select lubricants compatible with both seal material and expected temperature; some greases can degrade at high temp, altering friction.
• Heat shielding and cooling: where possible, shield seals from direct heat sources or provide fluid cooling to keep seal temperatures within safe limits.
• Regular inspection intervals: plan inspections based on worst-case thermal cycling; look for hardening, cracking or compression set.

Selection checklist and application examples

Quick checklist when selecting rod seals for temperature-critical systems:

1. Define continuous and peak temperatures (include frictional heat)
2. Specify fluid type and contamination levels
3. Determine pressure, rod speed, and stroke length
4. Choose material with margin for peaks and chemical compatibility
5. Design gland for thermal expansion and extrusion control
6. Prototype test under worst-case cycles

Example mappings:

• Mobile hydraulic cylinder (ambient up to 90°C, oil temp 100°C): HNBR or NBR if cost-sensitive; HNBR preferred for extended life.
• High-temperature process cylinder (continuous 180–220°C): FKM or PTFE-based rod seals; consider FFKM if aggressive chemicals present.
• Cryogenic actuator (-150°C): PTFE-based seals or specially compounded elastomers; ensure low-temp testing.
• High-wear reciprocating rod with moderate temp (up to 80°C): Polyurethane for abrasion resistance.

FAQ

Q: What is the single best rod seal material for all temperatures?

A: There is no single best material for all temperatures. PTFE and FFKM cover the widest ranges at the high and low ends, but trade-offs include elasticity, cost, and extrusion resistance. Material selection must consider temperature, fluid and mechanical conditions.

Q: Can I use PTFE rod seals without backup rings at high pressure?

A: Not recommended. PTFE has low elasticity and can extrude under high pressure unless supported by back-up rings and appropriate gland design.

Q: How much temperature margin should I allow for rod seal selection?

A: A conservative margin of 10–25°C above expected maximum operating temperature is typical to accommodate spikes and frictional heating.

Q: Do fillers (e.g., carbon, bronze) change temperature limits of PTFE seals?

A: Fillers alter wear, friction and thermal conductivity but do not drastically change the upper thermal stability of PTFE. However, they can improve mechanical behavior (reduced creep) at elevated temperatures.

Q: How do I validate a seal in my application?

A: Conduct prototype tests including thermal cycling, hot-oil aging, dynamic life testing, and compression set measurements while monitoring leakage and friction. Work with an experienced manufacturer for compound tuning.

Contact and next steps

If your project involves temperature-critical rod seals, contact Polypac for technical consultation, material recommendations, and prototype testing. View our product range or request a custom solution: O-Rings, Rod Seals, Piston Seals, End Face Spring Seals, Scraper Seals, Rotary Seals, Back-up Rings, and Dust Rings. Our team can help select the optimal material and gland design for your temperature envelope.

Sources and references

• Parker O-Ring Handbook (Parker Hannifin Corporation), technical data and material ranges.
• SKF Sealing Solutions Guide and product datasheets for dynamic seals.
• MatWeb Material Property Data (typical elastomer and PTFE property tables).
• DuPont PTFE product information (Teflon technical data).
• Manufacturer datasheets for FFKM and specialty compounds (various supplier technical notes).
• Internal testing best practices and guidelines from industry seal manufacturers.
